PC-3000 SSD Systems. The List of Supported SSDs (regularly updated, ver. 3.6.2)

Posted on 02/13/2025 by ACELab team

Hello friends!

The ACE Lab developers constantly research drives, which results in a rapid expansion of the Support List for most of the modern SSDs. So with the PC-3000 Systems that support Solid State Drives, you will always be on the cutting edge of
data recovery technology!

The PC-3000 SSD/Ultimate Systems contain one of the following software add-ons:

► PC-3000 SSD (for the PC-3000 Express/UDMA System, software ver.7.6.x)
► PC-3000 SSD Extended (for the PC-3000 Portable III / PRO System, software ver.7.6.x)

The PC-3000 SSD Extended is the new software add-on that supports the widest range of SSD types: SATA, mSATA, M.2 SATA, M.2 PCIe NVMe/АHCI, PCIe x16, Apple Macbook, LIF, ZIF, PATA, Intel Optane H10/H20. The PCIe drives are connected via the special adapters from ACE Lab:

M.2 PCIe NVMe/AHCI SSD & M.2 SATA SSD adapter PCIe NVMe/AHCI Adapter for Apple Macbook SSD PCIe x16 SSD Adapter

MacBookPro A1706/A1708 (2016/2017) PCIe SSD

SSD PCIe NVMe/AHCI + Intel Optane Adapter

The current version of the PC-3000 SSD/PC-3000 SSD Extended software is 3.6.2.

When recovering data from Solid State drives you should keep in mind the following:

► You can recover data only if there are no issues with the hardware of an SSD. The CPU, NAND memory chips, and PCB should be in good condition. This means that, when you power on the SSD, the ATA registers should display a status. The drives might be in the BSY state, or they might return the wrong capacity / ID, but they should give a response.

► The PC-3000 SSD/PC-3000 SSD Extended software add-on supports the combination of the Firmware (Manufacturer) and the controller (CPU). Some manufacturers use the same controllers with a different Firmware, with different technological commands so that such drives might be unsupported.

E.g. fully supported Marvell 88SS9174 controllers are used in the Micron, Plextor, and Crucial drives, that all have similar FW. But some of the Lite-on SSDs based on the same 88SS9174 CPU are not supported because their firmware microprogram is completely rewritten by the Lite-on company. At the same time, modern families of Silicon Motion and Phison drives have the default SM22xx and PS31xx platforms which are very similar. So, if you get any drive based on the PS3111 controller, it would also be supported, even if such a model is not present in the Support List.

► Our developers are working hard on adding primarily the most popular drives to the Support List. However, the popularity of the devices may vary depending on the region. Some drives that might be common for your region may be very rare in others.

► If you have an SSD with the File System issues, deleted info, or missed files that is not in the Support List, you can still use your PC-3000 System (with the Data Extractor software) to access data! The PC-3000 SSD/PC-3000 SSD Extended software add-ons are used only for the cases when SSDs have serious issues with internal firmware, translator tables, and other logical issues!

M.2 interface difference – PCIe NVMe M.2 and SATA M.2

► NVMe M.2 (M-key)supported only by PC-3000 Portable III and Portable PRO tools!

► SATA M.2 (B+M Key) supported by PC-3000 UDMA-E, Express and Portable III and Portable PRO.

The list of supported drives grouped by Utilities:

PCIe SSDs supported by the
PC-3000 Portable III / PRO Systems

NVMe Silicon Motion Controller Family:

  • SM2260
  • SM2263XT
  • SM2262EN
  • SM2263EN
  • SM2320G (Native USB)
  • SM2269XT
  • HP H8068 (SM2263XT)
  • HP H8038 (SM2262EN)

SSD Models:

NVMe Phison Controller Family:

  • PS5007
  • PS5008
  • PS5012 (Toshiba/Kioxia NAND)
  • PS5013
  • PS5016
  • PS5018 (Only Repairing)
  • PS5019
  • Toshiba TC58NC1202GST (PS5012) (Toshiba/Kioxia NAND)
  • Seagate STXYP016C031 (PS5012)  (Toshiba/Kioxia NAND)
  • Seagate STXZP01B6721 (PS5013)
  • Seagate STXZP010BE70 (PS5016)
  • Seagate STXZY01049E0 (PS5018)

SSD Models:

  • Apacer A52280P2 (PS5008)
  • Apacer AS2280P4 (PS5012)
  • Apacer AS2280Q4 (PS5016)
  • Apacer PP3480 (PS5013)
  • Dexp L2 (PS5012)
  • Dexp L3 (PS5013)
  • Dexp M1 (PS5012)
  • GIGABYTE AORUS ASM2NE6 (PS5016)
  • Gigabyte GSM2NE8 (PS5008)
  • Kingston A1000 (PS5008)
  • Kingston KC1000 (PS5007)
  • Kingston KC3000 (PS5018)
  • LiteON MU X (PS5008)
  • MSI SPATIUM M450 (PS5019)
  • Novation 3D
  • Patriot Hellfire M2 (PS5007)
  • Patriot Scorch M2 (PS5008)
  • QUMO Novation 3D (Ps5013)
  • Qumo Novation 3D (PS5019)
  • Seagate Barracuda 510 (Seagate STXYP016C031 (PS5012))
  • Seagate BarraCuda Q5 (Seagate STXZP01B6721 (PS5013))
  • Seagate FireCuda 510 (Seagate STXYP016C031 (PS5012))
  • Seagate Firecuda 520 (Seagate STXZP010BE70 (PS5016))
  • Seagate FireCuda 530 (Seagate STXZY01049E0 (PS5018))
  • Smartbuy E13T (PS5013)
  • Smartbuy Impact E12 (PS5012)
  • Smartbuy M8 (PS5008)
  • Toshiba RC500 (Toshiba TC58NC1202GST (PS5012))
  • WD_BLACK SN750 SE (PS5019)
  • Any other SSD based on supported PS controller!

NVMe Marvell Controller Family:

  • 88SS1093

SSD Models:

SATA SSDs supported by the
PC-3000 Portable III / PRO Systems, PC-3000 Express Systems, PC-3000 UDMA Systems

SATA Silicon Motion Controller Family:

  • SM2236G
  • SM2246XT
  • SM2246EN
  • SM2256K
  • SM2258G
  • SM2258H
  • SM2258XT
  • SM2259XT
  • Transcend P3XV60 (SM2246XT)
  • Transcend 02-6500 (SM2246EN)
  • Kingston CS4341AA (SM2258XT)
  • HP H6008 G (SM2258XT)

SSD Models:

  • ADATA ISC3E (SM2246XT)
  • ADATA SP550 (SM2256K)
  • ADATA SU800 (SM2258G/H)
  • ADATA SU900 (SM2258G/H)
  • XPG SX950U SM2258G/H)
  • ADAT SU650 (SM2258XT)
  • AMD Radeon R3 (SM2256K)
  • AMD Radeon R5 (SM2258XT)
  • AMD Radeon R5 (SM2259XT)
  • Apacer AS350 Panther (SM2258XT)
  • Apacer AS340 Panther (SM2259XT)
  • Corsair Force LX (SM2246EN)
  • Crucial BX100 (SM2246EN)
  • Crucial MX500 (SM2258H)
  • Crucial BX500 (SM2258XT)
  • KingDian S200 (SM2258XT)
  • KingSpec PA25 (SM2236G)
  • KingSpec P3 (SM2259XT)
  • Lexar Professional CFast 3400x (SM2246XT)
  • Lite On LCH-256V2S-11 (SM2246EN)
  • Patriot P200 (SM2258XT)
  • Plextor M6V (SM2246EN)
  • Plextor S2C (SM2258H)
  • PNY CS1111 (SM2246EN)
  • QUMO Novation 3D (SM2259XT)
  • RevuAhn 850X (SM2246EN)
  • RevuAhn 880K (SM2246EN)
  • RevuAhn 900T PRO (SM2246EN)
  • RevuAhn 885 (SM2258XT)
  • SanDisk SSD Plus (SM2246XT)
  • Silicon Power Slim S55 (SM2246XT)
  • Silicon Power Slim S55 (SM2258XT)
  • Silicon Power Slim S55 (SM2259XT)
  • Silicon Power Slim S60(SM2246XT)
  • SmartBuy Jolt (SM2258XT)
  • TeamGroup MS30 (SM2258XT)
  • Transcend 370s (Transcend 02-6500 (SM2246EN))
  • Transcend SSD370S (SM2258G/H)
  • Transcend ESD230C (SM2258XT)
  • Transcend MTS820 (SM2258XT)
  • WD Green G1 (SM2258)
  • Other drives based on supported SM controllers

SATA Phison Controller Family:

  • PS3105
  • PS3108
  • PS3109 PATA for UDMA/Express*
  • PS3110
  • PS3111 PATA for UDMA/Express*
  • PS3112 PATA for UDMA/Express*
  • STXZA01EA3B7 (PS3110)
  • TC58NC1000 (PS3110)
  • Seagate STXZA01EA3B7 (PS3110)
  • Toshiba TC58NC1000 (PS3110)
  • Kingston CP33238B (PS3111) PATA for UDMA/Express*
  • Transcend U01749ME3 (PS3111) PATA for UDMA/Express*
  • Transcend 02-3010 (PS3111) PATA for UDMA/Express*
  • Toshiba TC58NC1010 (PS3111) PATA for UDMA/Express*
  • HG2258 (Hosin Global – modified PS3111) PATA for UDMA/Express*
  • AS2258 (ASolid – modified PS3111) PATA for UDMA/Express*

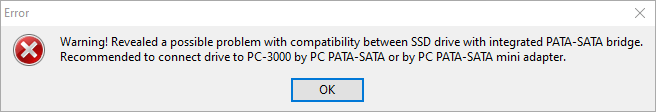

*For PC-3000 UDMA and Express, SATA to PATA adapter is required for a good drive connection!

SSD Models:

  • AMD Radeon R5 (AS2258)
  • Apacer AS340 (PS3111)
  • Apacer AS450 (PS3111)
  • Crucial V4 (PS3105)
  • Corsair Nova (PS3105)
  • Corsair Force LS (PS3109)
  • DEXP M6 (PS3111)
  • Foxline FLSSDX6SE (PS3111)
  • Gigabyte GSTFS31 (PS3111)
  • GOODRAM CL100 (PS3111)
  • GOODRAM CX300 (PS3111)
  • GOODRAM CX400 (PS3111)
  • GOODRAM S400U (PS3111)
  • GOODRAM IRDM (PS3111)
  • GOODRAM IRDM S25C (PS3112)
  • Kingston SMSM15S3 (Dual PS3108)
  • Kingston SSDNow UV300 (PS3110)
  • Kingston HyperX Savage (PS3110)
  • Kingston A400 (Kingston CP33238B (PS3111))
  • Lite-On MU3 (PS3111)
  • Lite-On PH4 (PS3111)
  • Lite-On PH6 (PS3111)
  • OCZ Trion 100 (Toshiba TC58NC1010 (PS3111))
  • Patriot Plaze (PS3109)
  • Patriot Blast (PS3110)
  • Patriot Spark (PS3111)
  • Patriot Burst (PS3111)
  • QUMO Novation 3D (AS2258)
  • Seagate Fast SSD (PS3110)
  • Seagate One Touch SSD (PS3111)
  • Seagate BarraCuda Q1 ((STXZA01BE513 (PS3111))
  • Seagate BarraCuda 120 ((STXZA01F5578) (PS3112))
  • Seagate IronWolf 125 ((STXZA01F5578) (PS3112))
  • Silicon Power Slim S55 (PS3108)
  • Silicon Power Slim S55 (PS3109)
  • Silicon Power Slim S55 (PS3111)
  • Silicon Power Slim S60(PS3111)
  • Silicon Power A55 (HG2258)
  • Silicon Power A56 (PS3111)
  • Silicon Power A58 (AS2258)
  • Smartbuy Ignition 2 (PS3108)
  • Smartbuy S9M (PS3109)
  • Smartbuy Revival (PS3110)
  • Smartbuy Firestone (PS3110)
  • Smartbuy Ignition 4 (PS3110)
  • Smarbuy Revival 2 (PS3111)
  • Smartbuy S11T (PS3111)
  • Smartbuy Impact (PS3112)
  • Transcend 220S (Transcend 02-3010 (PS3111))
  • Other drives based on supported PS controllers

SATA Maxio controlelr family:

  • MAS0902
  • MAS1102 (only for ADATA SU650 240GB)*

*MAS1102 is still under deep developing and not completely supported

SSD Models: (Model – controller – chip type)

  • ADATA SU630 (MAS0902+B27A)
  • ADATA SU635 (MAS0902+N18A)
  • ADATA SU650 (MAS1102+SSV6)
  • Apacer AS350 (MAS0902+B16A)
  • Hikvision C100 (MAS0902+SKV5)
  • SmartBuy Splash (MAS0902+B16A)
  • KingSpec P3 (MAS0902+B17A)
  • KingSpec Q (MAS0902+BOKB)

SATA Marvell controller family:

  • 88SS9174
  • 88SS9187
  • 88SS9189
  • 88SS9190
  • 88SS1074

SSD Models:

  • Crucial C300 (88SS9174)
  • Crucial C400 (88SS9174)
  • Crucial M4 (88SS9174)
  • Crucial M500 Partial support!*
  • Crucial M550 Partial support!*
  • Crucial MX100 Partial support!*
  • Crucial MX200 Partial support!*
  • Intel 510 Partial support!*
  • Micron C300 (88SS9174)
  • Micron C400 (88SS9174)
  • Plextor M3 Partial support!*
  • Plextor M3 Pro Partial support!*
  • Plextor M5 Pro Extreme Partial support!*
  • Plextor M5 Pro Partial support!*
  • Plextor M5S Partial support!*
  • Sandisk Genesis Partial support!*
  • Sandisk SSD Plus (88SS1074)
  • Sandisk Ultra II (88SS1074, 88SS9189, 88SS9190)
  • Sandisk Ultra Plus Partial support!*
  • Sandisk Vulcan Partial support!*
  • Sandisk X110 (M.2 2260) Partial support!*
  • Sandisk X300 Partial support!*
  • WD Blue G1 (88SS1074)

*Except for the BSY state drives

SATA Samsung controller family:

  • S3C29RBB01
  • S3C29MAX01
  • S4LJ204X01
  • S4LN021X01
  • S4LN045X01
  • S4LN054X02

SSD Models:

*Terminal connection is required!

SATA Indilinx Barefoot controller family:

  • IDX110M00
  • IDX110M01
  • IDX110M02

SSD Models:

  • Corsair Extreme series
  • Crucial M225
  • OCZ Solid 2 series
  • OCZ Vertex 1
  • Other drives based on IDX110Mxx

SATA OCZ Barefoot 3 controller family:

  • IDX500Mxx

SSD Models

  • AMD Radeon R7
  • OCZ ARC 100
  • OCZ Vector
  • OCZ Vector 150
  • OCZ Vector 180
  • OCZ Vector 480
  • OCZ Vertex 450
  • OCZ Vertex 460
  • OCZ Vertex 460A

SATA Intel controller family:

  • PC29AS21AA0

SSD Models

  • Intel X18
  • Intel X25
  • Intel 310
  • Intel 710

If you have any questions regarding your data recovery cases, you’re welcome to address them to the Technical Support department.
